Our flagship interactive touch displays for education and the workplace
---
Cutting-edge technology at a competitive price point. For a more connected and engaging collaboration experience in class and meeting rooms. InFocus JTouch 50 Series offers ease of use bringing capability to the room without complexity for a proven return on your technology investment. It is simple to deploy and support, leading to a lower total cost of ownership.
SENSITIVE DESIGN
Designed and built with 2nd generation zero bonding technology and 3mm hardened anti-glare glass. Elegant narrow two tone bezels, concealed snap-in wireless module, magnetic pen holders and stereo 20-watt speakers all provide an outstanding crystal clear audio-visual and multi-touch experience more significant than ever before.
BREAKTHROUGH PERFORMANCE
Our most advanced jtouch running Android 9 is controlled by the MediaTek 9950 SoC with the ARM® Cortex™ A73 Quad Core 1.8Ghz. This powerful combination increases the computing performance up to 68% and delivers flawless 4K video performance.
CASTING & COLLABORATION WITH LIGHTCAST 3
The dual-band MU-MIMO wireless module provides the latest WiFi-6 standard supporting multiple device connections, reduced latency and throughput speeds of up to 9.6 Gigabits per second. This latest technology provides the base connection for seamless casting and collaboration capabilities of the LightCast3 software for meetings over a local network or via the JTouch hotspot for additional security.
A SINGLE CABLE SOLUTION WITH USB-C
Easily connect USB-C devices through the 50 series's USB-C port with up to 65-watt power delivery. USB-C supports video, audio, touch, data, and power output for charging laptop devices quickly over a single cable.
LIGHTMANAGER™ & LIGHTSTORE™
Users can easily search for and install from a curated selection of apps in the InFocus LightStore or use the built-in Cloud Drive app for accessing documents on OneDrive™ or Google Drive ™. Creative meetings and classroom lessons are enhanced with annotation anywhere, viewing Oce files, creating whiteboards, and so much more. Administrators can use the InFocus LightManager software to manage the deployment of apps, release firmware updates, deploy settings, schedule alert messages all remotely.
RUN ANDROID OR MICROSOFT
All the flexibility you need our powerful and flexible computing modules give you the freedom to choose the interactive display operating system that works best for your daily needs and IT ecosystem.
PC-i5-10400-8256
Intel® Core™ i5-10400, 8GB Memory, 256GB SSD, Intel® UHD Graphics 630
PC-i7-10700-16512
Intel® Core™ i7-10700, 16GB Memory, 512GB SSD, Intel® UHD Graphics 630

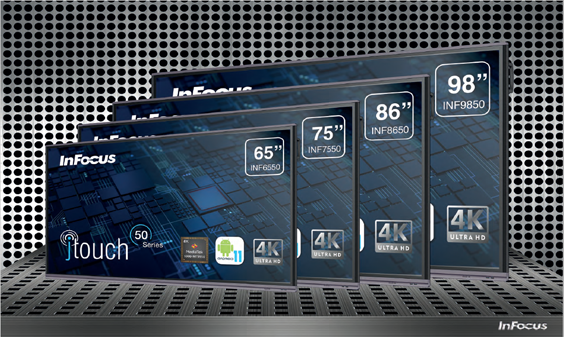

InFocus JTouch 50 Series
INF6550, INF7550, INF8650, INF9850
- Resolutions ultra HD 4K
- OS android 11
- 8K Mediatek S900-MT9950 Chipset
Specification Details
INF6550 | INF7550 | INF8650 | INF9850 | ||
---|---|---|---|---|---|
DISPLAY | |||||
Screen Size (Diagonal) (in) | 64.50 | 74.52 | 85.60 | • | |
Backlight | D-LED | ||||
Native Resolution (Pixels) | 3840 x 2160 | ||||
Aspect Ratio | 16 : 9 | ||||
Contrast Ratio | 5000 : 1 | ||||
Brightness (Maximum cd/m2) | 400 | ||||
Response Time (ms) | 8 | ||||
Display Color (billions) | 1.07 (10bit) | ||||
Refresh Rate (Hz) | 60 | ||||
Viewing Angle (h/v, deg) | 178 / 178 | ||||
Viewable Area (h x v, mm / in) | 1428 x 804 / 56 x 32 | 1650 x 928 / 65 x 37 | 1895 x 1066 / 75 x 42 | 2159 x 1214 / 85 x 48 | |
Glass Treatment (mohs) | Antiglare, 7 | ||||
Glass Thickness (mm / in) | 3.2 / 0.13 | ||||
Sensors | Light | ||||
Audio (w) | 2 x 20 | ||||
Life Time max (h) | 50000 | ||||
Frame Material | Alumunium | ||||
INTERACTIVITY | |||||
Touch Technology | IR | ||||
Touch Point max | 20 | ||||
Typical Response Time (ms) | <10 | ||||
Accuracy (mm / in) | +/- 1 / 0.04 | ||||
Minimum Object Size Single Touch (mm / in) | >3.0 / 0.12 | ||||
Minimum Object Size Multi Touch (mm / in) | >8.0 / 0.31 | ||||
Support Operating Systems | WIndows, Linux, Mac OS, Chrome | ||||
CONNECTIVITY | |||||
Analog Input | 1 x Mini D-sub 15-pin (VGA) | ||||
Analog Output | • | ||||
Digital Input | 3 x HDMI™ 2.0 | ||||
Audio Input | 3.5 mm Stereo Mini Jack | ||||
Audio Output | >3.5 mm Stereo Mini Jack, SPDIF | ||||
Network | 2x LAN 10/100/1000 | ||||
Service | • | ||||
Wi-Fi | 802.11a,n,ac,ax | ||||
Bluetooth | 2.1,3,4,4.1,4.2,5 | ||||
Control | 2x RJ45, RS232, Remote Control | ||||
OPS / PC Slot | Yes | ||||
SYSTEM | |||||
Operating System & Version | Android 9 | ||||
System on a ship (SoC) | MT9950 (S900) 8K | ||||
Central Prosessing Unit (CPU) | ARM® Cortex™ A73 Quad Core 1.8Ghz | ||||
Graphics Prosessing Unit (GPU) | ARM® Mail G52 MC2 | ||||
Ramdon Access Memory (RAM) (GB) | 4 | ||||
Read Only Memory (ROM) (GB) | 32 | ||||
Included Applications | Whiteboard, Browser, Finder, LightCast3, Annotation, WPS Office, Stopwatch, Screen Capture, LightServer, LightManager, LightStore, Pallete, Keeper, Visualizer, Welcome, CLoud Drive, SpotLight, Screen Recording, Timer | ||||
POWER | |||||
Power Supply (V) | AC 100 - 240, 50/60 Hz | ||||
Power Consumption Max (W) | 450 | 550 | 550 | 600 | |
Power Consumption Network Standby (W) | <2.0 | ||||
Power Consumption Standby | <0.5 | ||||
GENERAL | |||||
Dimensions (W x H x D) (mm / in) | 1488 x 86 x 897 / 58.9 x 3.4 x 35.1 | 1709 x 86 x 1019 / 67.3 x 3.4 x 40.1 | 1957 x 86 x 1159 / 77 x 3.4 x 45.6 | 2244.7 x 1323.2 x 89.5mm | |
Weight (kg / lbs) | 38 / 83.8 | 49.5 / 109.1 | 64.6 / 142.4 | 103.6 / 227.8 | |
Shipping Dimensions (W x H x D) (mm / in) | 1628 x 208 x 1005 / 64.1 x 8.2 x 39.6 | 1853 x 225 x 1140 / 73 x 8.9 x 44.9 | 2110 x 225 x 1283 / 83.1 x 8.9 x 50.5 | 2483 x 376 x 1493 | |
Shipping Weight (kg / lbs) | 48.5 / 106.9 | 63.4 / 139.8 | 82.3 / 181.4 | 135.2 / 297.4 | |
VESA Mount (mm / in) | 600 x 400 / 23.6 - 15.7 | 800 x 400 / 31.5 - 15.7 | 800 x 600 / 31.5 - 23.6 | 800 x 600 / 31.5 - 23.6 | |
Operating Temperature (°C / °F) | 0 - 40 / 32 - 104 | ||||
Operating Humidity (%) | 10 - 90 | ||||
Operating Altitude (m / ft) | <5000 / <16404 | ||||
Storage Temperature (°C / °F) | -20 -60 / -4 -140 | ||||
Storage Humidity | 10 - 90 | ||||
Security | PIN, Kensington Lock | ||||

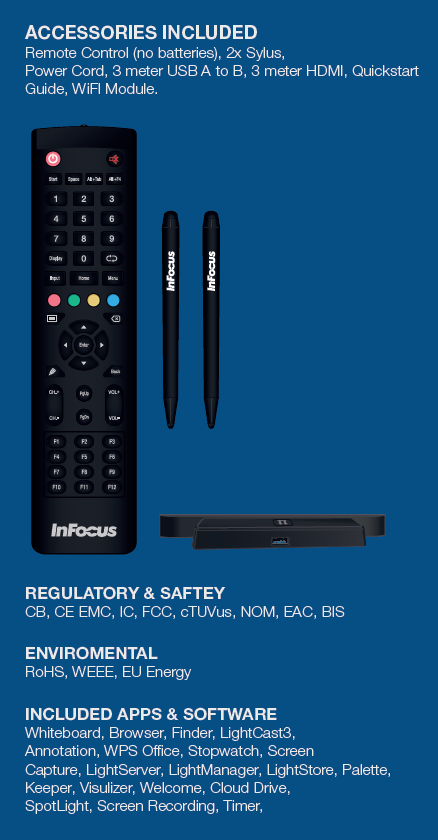

In the Box | Remote Control (no batteries), 2x Stylus, Power Cord, 3m USB A to B, 3m HDMI, QSG, WiFi Module | ||||
Safety and Regulatory | CB, CE EMC, IC, FCC, cTUVus, NOM, EAC, BIS | ||||
Environmental | RoHS, WEEE, EU Energy |
